Understanding Agent Monitor¶

The Agent Monitor capabilities are shown on the following tabs:

All runs: It shows comprehensive data on all agent run instances and provides a comprehensive record of all the endpoint calls made to the agent.
Model runs: This tab shows specific data on Gen AI node run instances, focusing on endpoint calls made to Gen AI nodes within the agent.

Both tabs include summary metrics at the top of the page, including total runs/requests, average response times (P90 and P99), and failure rates.

All Runs¶

The All runs tab provides the following information for each agent run:

Run ID: The unique identifier for the flow.
Status: The current state of the request. It displays one of the following statuses:
- In Progress: The request is being processed.
- Waiting: The request is outside of GALE and is awaiting a response from the connected system (typically for API nodes in Async mode).
- Success: The request has been completed successfully.
- Failed: The request was not completed successfully.
Response time: The duration the agent takes to complete a request and provide an output.
Nodes executed: The total number of nodes executed in the run.
Start time: The time when the request is initiated.
End time: The time the response is received.
API key: The API key used to execute the agent. (This is the name provided in the API keys page when you created a new API key. If you did not provide a name, the system uses the default name ‘Secret Key’. You can have multiple API keys for a single agent.)

You can also see the following metrics on the top of the page:

TOTAL RUNS: The total number of agent runs.
RESPONSE TIME: The average response time of all the agent runs. It is measured by the following two metrics:
- P90: This metric represents the response time below which 90% of the requests fall.
- P99: This metric represents the response time below which 99% of the requests fall.
FAILURE RATE: The percentage of failed runs.

These metrics are dependent on the selected date range, filters, and search criteria. When you apply a search, the metrics on the top of the page will be updated to reflect the specific request. Essentially, the displayed top metrics will vary based on the filters you apply.

Model Runs¶

Each GenAI node in the agent is recorded as a separate request in the Model runs tab of the Agent monitor page. For example, if three GenAI nodes are used in an agent, three separate requests for each of the three GenAI nodes are displayed.

If your agent currently does not have any Gen AI nodes, this section will remain empty. Once you add Gen AI nodes, the Model runs will begin to reflect here.

The Model runs tab provides the following information for each Gen AI node call:

Request ID: The unique identifier of the GenAI node request.
Status: The current state of the request. It displays one of the following statuses:
- In Progress: The request is being processed.
- Waiting: The request is outside of GALE and is awaiting a response from the connected system (typically for API nodes in Async mode).
- Success: The request has been completed successfully.
- Failed: The request was not completed successfully.
Node name: The name of the GenAI node.
Model name: The model that is used for the GenAI node.
Response time: The amount of time taken by the GenAI node to complete the request.
Start time: The time when the GenAI node has started its execution.
End time: The time when the GenAI node has completed its execution.

You can also see the following metrics on the top of the page:

TOTAL REQUESTS: The total number of Gen AI node requests.
RESPONSE TIME: The average response time of all the GenAI node requests. It is measured by the following two metrics:
- P90: This metric represents the response time below which 90% of the requests fall.
- P99: This metric represents the response time below which 99% of the requests fall.
FAILURE RATE: The percentage of instances in which the Gen AI node has failed in execution.

These metrics are dependent on the selected date range, filters, and search criteria. When you apply a search, the metrics on the top of the page will be updated to reflect the specific request. Essentially, the displayed top metrics will vary based on the filters you apply.

Viewing Detailed Run Information¶

Clicking each row in either the All runs tab or the Model runs tab opens a detailed view panel on the right. This view is similar to the Run dialog panel on the Agent flow canvas. Learn more.

The panel displays the following details:

Run ID/Request ID: The unique identifier for the flow.
Response Time: The duration the agent takes to complete a request and provide an output.
Debug icon: Clicking this icon displays the debug log details.
Input: The Input section displays the input sent to the agent.
Flow log: The flow log section displays the information of each node.
- Success: Displays the log as in the debug panel.
- Failure: Displays failure details as in the debug panel.

  For GenAI nodes, when you expand the node you can see the information related to each node along with the scanner information.
Output section: The Output section displays the agent's output (for successful runs). You can copy the output and view tokens.

Searching and Filtering Information¶

Manual Search¶

Use the search box in the top right corner of the Agent monitor page to find specific runs or calls based on keywords.

Time-based Search¶

Use the calendar option to search for runs or calls from a specific time period. You can filter your search results by time period, whether it’s something from the last day, week, month, or year.

Steps to use the time-based search:

Click the calendar button in the top right corner of the Agent monitor page.
Select a predefined time range or set custom dates.
Click Apply to update the results.

Custom Filters¶

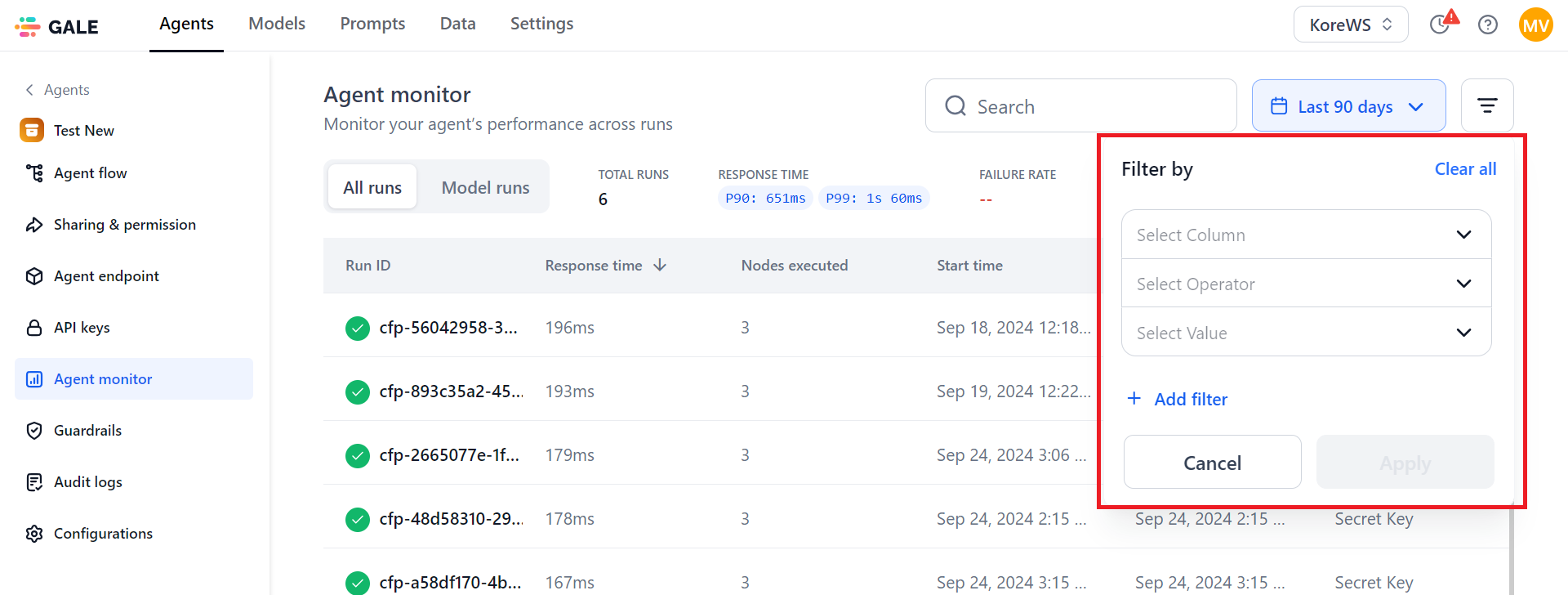

Use the filter option to filter the information displayed in the Agent monitor dashboard by applying custom filters. These filters allow you to select specific columns, apply operators such as Is Equal To or Is Not Equal To, and then specify the desired value.

You can also add multiple filters using AND/OR operators for more precise results.

Steps to use the filters:

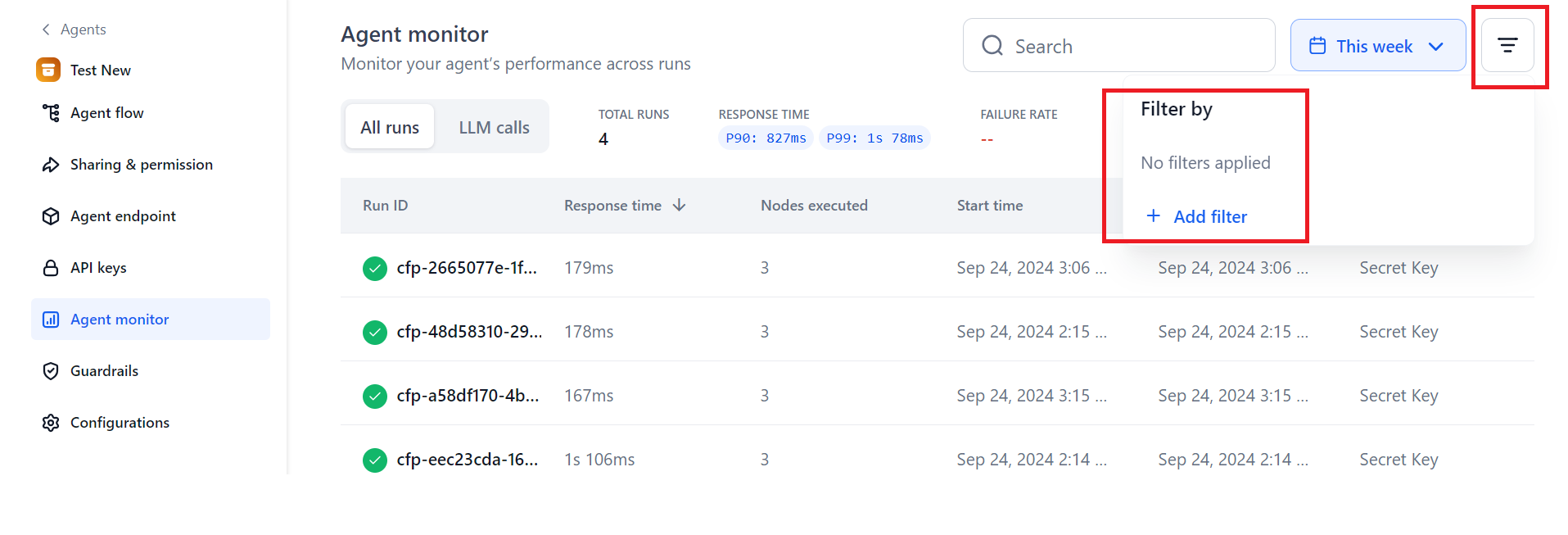

Click the Filter icon.
Click + Add filter.
Select options for Column, Operator, and Value.
Click Apply.

Understanding the Impact of Timeouts on Agent Endpoints¶

The impact of timeouts on agent endpoints depends on whether the process is synchronous (Sync) or asynchronous (Async). Sync requests are handled and fulfilled immediately, while Async requests may pause and show a ‘Waiting’ status until a response is received. If the response time is longer or the timeout is set to infinite, the system will wait indefinitely until the external system responds.

Below are the four scenarios showing how timeouts affect the agent endpoint, along with the corresponding status on the Agent monitoring page:

Agent 'Sync' & API node 'Sync':

Immediately fulfilled, no specific endpoint message.
'In-progress' status while running.

Agent 'Sync' & API node 'Async' (API node timeout < Agent Sync timeout):

API retrieves data, flow executes as 'In-progress' status, and the response is sent.
External requests: Flow is paused awaiting external’s systems response with 'Waiting' status, resumes to 'In-progress' when response returns.

Agent 'Async' & API node 'Sync':

Flow executes, and the response is sent to the callback URL.
'In-progress' status while flow is running.

Agent 'Async' & API node 'Async' (API node timeout < Agent Async timeout OR both are set to infinite):

External requests: Flow is paused awaiting external’s systems response with 'Waiting' status, resumes to 'In-progress' when response returns.
Informs if the request has already been fulfilled on retry.

The timeout settings affect how long the system waits for responses and how it handles retries, ensuring proper status updates and communication with external systems. For more information on configuring timeouts, see Configure an Agent and API Node.
